.........250V系列PTC...........

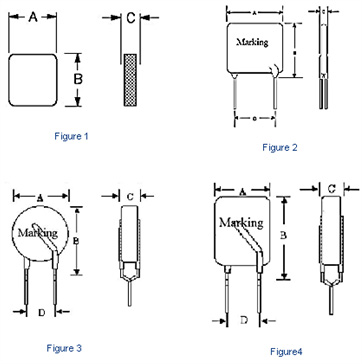

一、外形尺寸：
二、規(guī)格及尺寸表
|
Model/PDF
|
Vmax
(V) |
Imax
(A) |
Ih
(mA) |
Rmax
(Ω) |
Rmin
(Ω) |
Fig.
|
Maximum Contour Size
（mm） |
|||
|
A
|
B
|
C
|
D
|
|||||||
|
250-060U
|
250
|
3
|
60
|
40.0
|
26.0
|
3
|
6.0
|
9.3
|
3.8
|
5.1
|
|
250-080U
|
250
|
3
|
80
|
22.0
|
14.0
|
3
|
6.0
|
9.3
|
3.8
|
5.1
|
|
250-090U
|
250
|
3
|
90
|
20.0
|
10.0
|
3
|
6.0
|
9.3
|
3.8
|
5.1
|
|
250-110U
|
250
|
3
|
110
|
12.0
|
6.0
|
4
|
6.5
|
10.0
|
3.8
|
5.1
|
|
250-120
|
250
|
3
|
120
|
10.0
|
5.0
|
1
|
5.5
|
5.5
|
2.6
|
---
|
|
250-120U
|
250
|
3
|
120
|
10.0
|
6.0
|
4
|
7.0
|
10.0
|
3.8
|
5.1
|
|
250-145U
|
250
|
3
|
145
|
6.5
|
3.5
|
4
|
7.0
|
10.0
|
3.8
|
5.1
|
|
250-180T
|
250
|
10
|
180
|
2.2
|
1.0
|
3
|
10.2
|
14.5
|
3.4
|
5.1
|
|
250-180U
|
250
|
10
|
180
|
3.0
|
1.0
|
4
|
10.4
|
14.5
|
3.8
|
5.1
|
|
250-200U
|
250
|
10
|
200
|
6.0
|
3.0
|
2
|
10.5
|
17.0
|
3.8
|
5.1
|
|
250-400U
|
250
|
10
|
400
|
3.0
|
1.0
|
2
|
10.5
|
17.0
|
3.8
|
5.1
|
|
250-600U
|
250
|
10
|
600
|
2.0
|
0.6
|
2
|
16.0
|
18.0
|
4.5
|
5.1
|
|
250-800U
|
250
|
10
|
800
|
1.0
|
0.4
|
2
|
20.0
|
22.0
|
4.5
|
5.1
|
