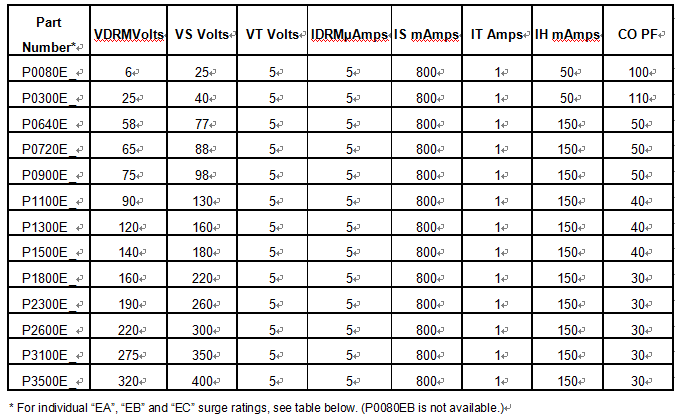

TO-92半導體放電管產(chǎn)品參數(shù)：
Notes:
●All measurements are made at an ambient temperature of 25°C. IPP applies to -40°C through +85°C temperature range.
●IPP is a repetitive surge rating and is guaranteed for the life of the product.
●Listed SIDACtors are bi-directional. All electrical parameters & surge ratings apply to forward and reverse polarities.
●VDRM is measured at IDRM.
●VS is measured at 100V/µs.
●Special voltage (VS & VDRM) and holding current (IH) requirements are available upon reques。
●Off-state capacitance is measured at 1MHz with a 2 volt bias and is a typical value for “EA” and “EB” product. “EC” capacitance
is approximately 2x the listed value.
